EGM Machine Tap Straight Flute
Material ID: 5978280

Straight flute tap with chamfer form C with a 2-3xP plug lead, for Einsatzgewinde Metrisch (metric Wire Insert thread) EGM5 with 0.80 mm pitch and 6H class of fit, dimensions according to DORMER-ISO standard with 6.3mm shank and 5.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

info If you want to see the prices or stock information, please sign in or request access.
Sign in to add to wish list
Product Feature

Bright (uncoated)

Thread Form, Metric ISO (Screw Thread Insert Type)

ISO Dormer Standard

DIN Thread Pitch Diameter Tolerance Zone (high basic pitch diameter)

Through or Blind Hole Application

1.5×D Usable Tool Depth to Diameter Ratio

High Speed Steel Tool Material

Semi-Bottoming Tap Chamfer (2 – 3 Pitch Lead)

Straight Flute Geometry

Right Hand Rotation / Cutting

Product Detail
Product nameE620M5
Product number (SAP)86017212
EAN number7320760384848
Ordering code ANSIE620M5

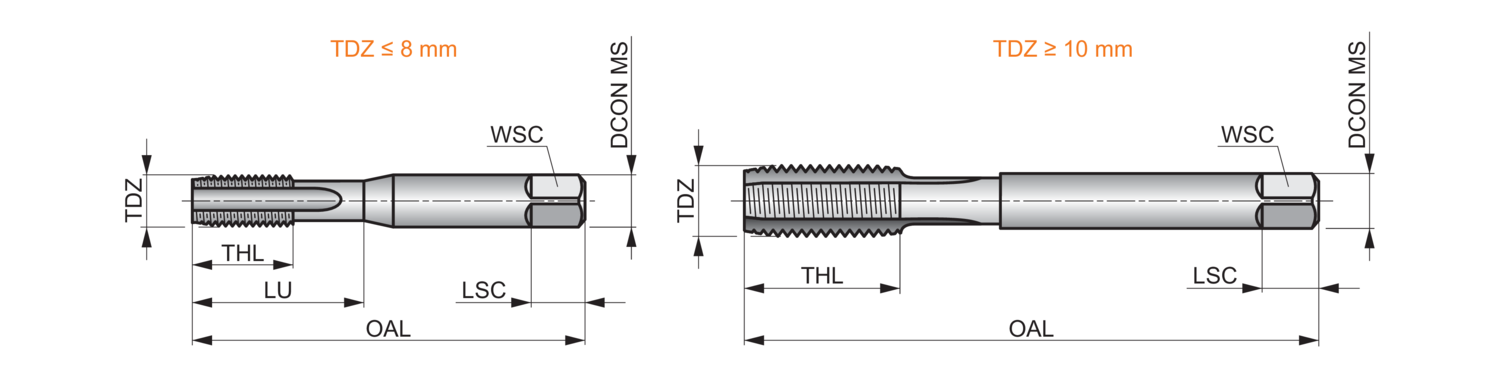

Thread diameter size (TDZ)5
Thread diameter - millimeter (TD)6.04 mm
Thread pitch - millimeter (TP)0.8 mm
Overall length - millimeter (OAL)66 mm
Overall length - inch (OAL)2.5984 inch
Threading length - millimeter (THL)13 mm
Threading length - inch (THL)0.5118 inch
Connection diameter - inch (DCON MS)0.248 inch
Connection diameter - millimeter (DCON MS)6.3 mm
Flute count (NOF)3
Usable Length - inch (LU)1.0236 inch
Usable Length - millimeter (LU)26 mm
Clamping width - inch (WSC)0.1969 inch
Clamping width - millimeter (WSC)5 mm
Clamping Length - inch (LCS)0.315 inch
Clamping Length - millimeter (LSC)8 mm
Premachined hole diameter - inch (PHD)0.2047 inch
Premachined hole diameter - millimeter (PHD)5.2 mm
Gross weight - grams14.7
