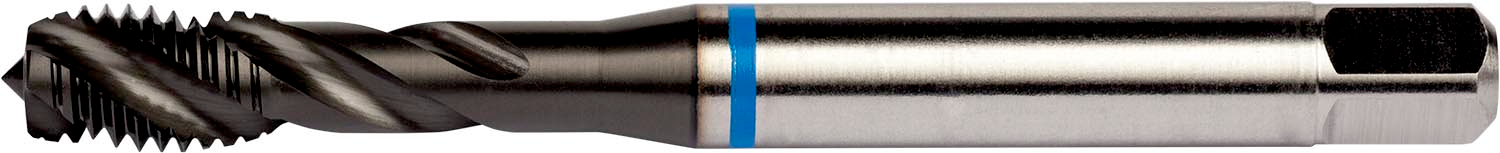

DIN ANSI Machine Tap, Blue Shark for Stainless Steel, Spiral Flute
Material ID: 7350361

Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 3/8" with 24 TPI and 2B class of fit with H4 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3180" shank and 0.2840" square drive, powder metallurgical HSS-E with Super-B coating and 40° helix angle for 2.5xD blind hole threading in stainless steel

info If you want to see the prices or stock information, please sign in or request access.
Sign in to add to wish list
Product Feature

Special TiAlN Coating (+ WC/C)

Thread Form, Unified Fine

DIN/ANSI Standards

Thread tolerance class 2B-3B

Blind Hole Application

2.5×D Usable Tool Depth to Diameter Ratio

High Speed Cobalt Powder Metal Tool Material

Semi-Bottoming Tap Chamfer (2 – 3 Pitch Lead)

Spiral Flute Geometry

Right Hand Rotation / Cutting

40° Helix Angle (Flute)

Product Detail
Product nameE9123/8H4
EAN number7320760752050
Product LineSHARK
Thread diameter size (TDZ)3/8
Threads per inch (TPI)24
Threading length - inch (THL)0.591 inch
Connection diameter - inch (DCON MS)0.318 inch
Connection diameter - millimeter (DCON MS)8.08 mm
Flute count (NOF)3
Tolerance limitH4
Usable Length - inch (LU)1.476 inch
Clamping width - inch (WSC)0.284 inch
Clamping Length - inch (LCS)0.44 inch
Premachined hole diameter - imperial (PHD)Q
Premachined hole diameter - inch (PHD)0.3346 inch
Premachined hole diameter - millimeter (PHD)8.5 mm
Gross weight - grams44
