Bar Peeling Insert
Material ID: 7347224
Single-sided negative barpeeling insert, round with a diameter of 38.1mm, 12.7mm thick for 8mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker MR, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO range M10 -M25, for stainless-steels
| EAN number | 3603603295162 |
| Product number (SAP) | 80029483 |
| Ordering code ANSI | RNGH 381200-MR:T7325 |
| Gross weight - grams | 167.133 |

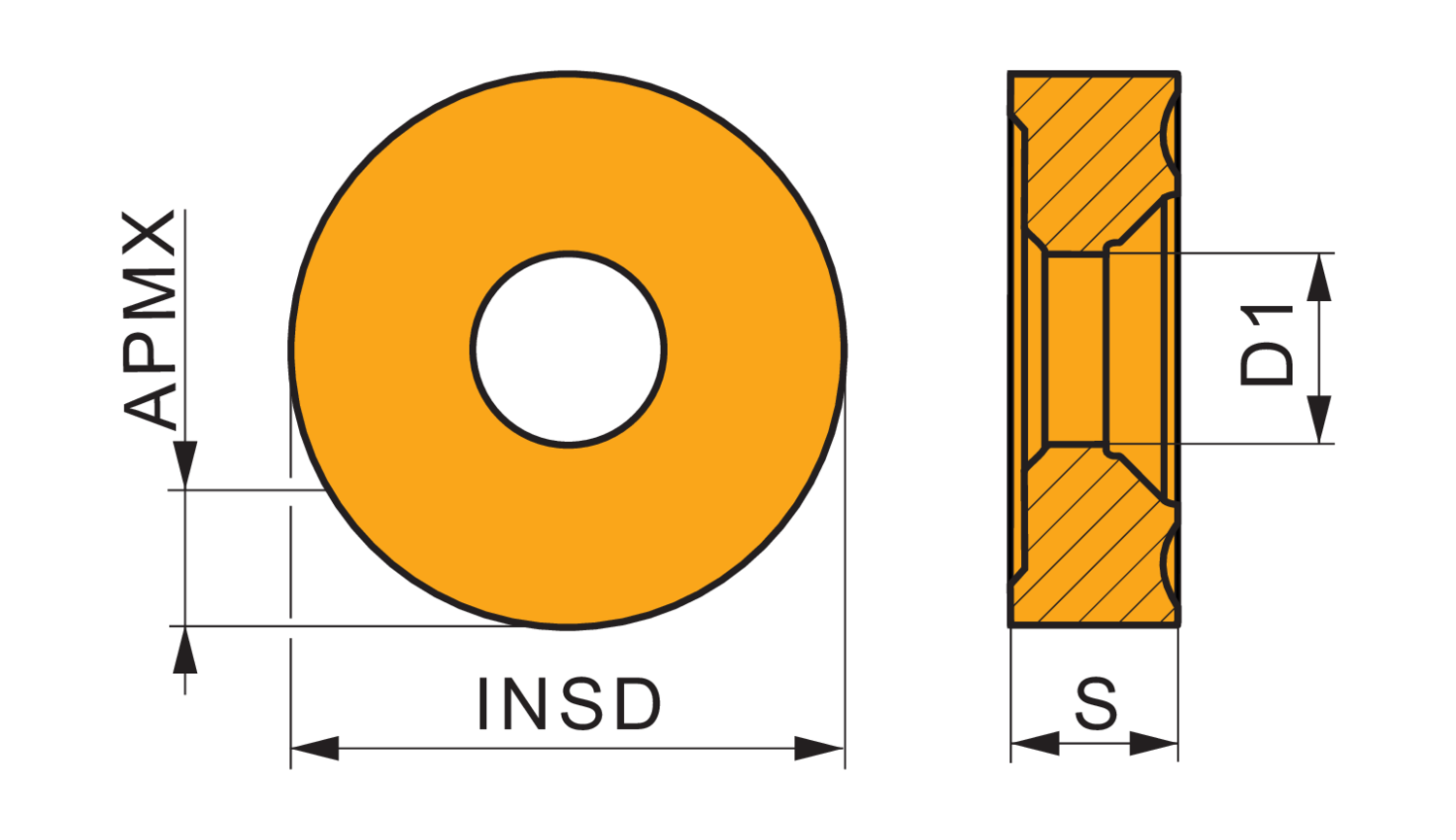

| Insert diameter - millimeter (INSD) | 38.1 mm |
| Insert thickness - millimeter (S) | 12.7 mm |
| Depth of cut maximum - millimeter (APMX) | 12 mm |
| Fixing hole diameter - millimeter (D1) | 12.7 mm |
| Grade | T7325 |
| Cutting depth - minimal - milimeters (ap) | 3 mm |
| Cutting depth - maximal - milimeters (ap) | 12 mm |
| Feed maximal - millimeter | 10 mm/rev |
| Insert Clearance Code and Angle | N 0° |
| Insert Design | RNGH |
| Insert size | 38 |
| Insert Thickness | 12 |
| Insert Type | H |
| Chipbreaker manufacturer's designation (CBMD) | MR |
| Insert shape code (SC) | R - round |
| ISO | RNGH381200-MR:T7325 |
